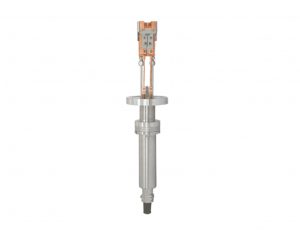

Small Single Hearth EB1Nano-UHV

This 4kW evaporator fits though an ISO63CF mounting port and features 4 cc crucible capacity and a dynamic beam deflection system. The ISO63CF mounting flange incorporates all media feedthroughs like high voltage, magnet current and water.

Specifications:

Max. Operating Power

4 kW

High Voltage Range

6-8 kV

Max. Emission Current

500 mA @ 8kV

Max. Filament Power

500 W

Magnet Deflection Current

+/- 2A

Standard Crucible Volumes

1 x 4 cm³

Dimensions (vacuum component)

9.5 cm H x dia 6.1 cm

Weight

1.5 kg
