High Voltage Power Supplies – WARP Family

Category:

Our new WARP series provides compact primary switched high voltage power supplies for an extensive (3-10kW) power range applications. The WARP-6 and WARP-10 is also available as a 2-gun version, the highest power that any one gun can have is 6kW / 10 KW. With our HV power supplies you also have an ultra-fast arc-management for uniform deposition process.

Specifications



WARP 3

WARP 6

WARP 10

Max. Power (kW)

3

6

10

Max. Emission Current

375mA

600mA

1000mA

High voltage range

from -5kV to -8 kV (adjustable)

from -5kV to -10 kV (adjustable)

Sources to control

1

2

Input Voltage for Power

230 Volts, 1-phase, 50Hz

400 Volts, 3-phase, 50/60 Hz, 20 A

Ripple

less than 100 Volts

Dimensions

19″, 3U

19″, 4U

Weight (kg)

26

35

35

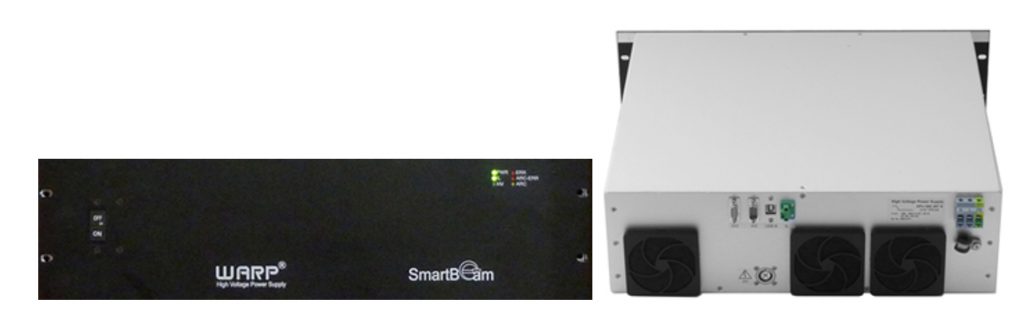

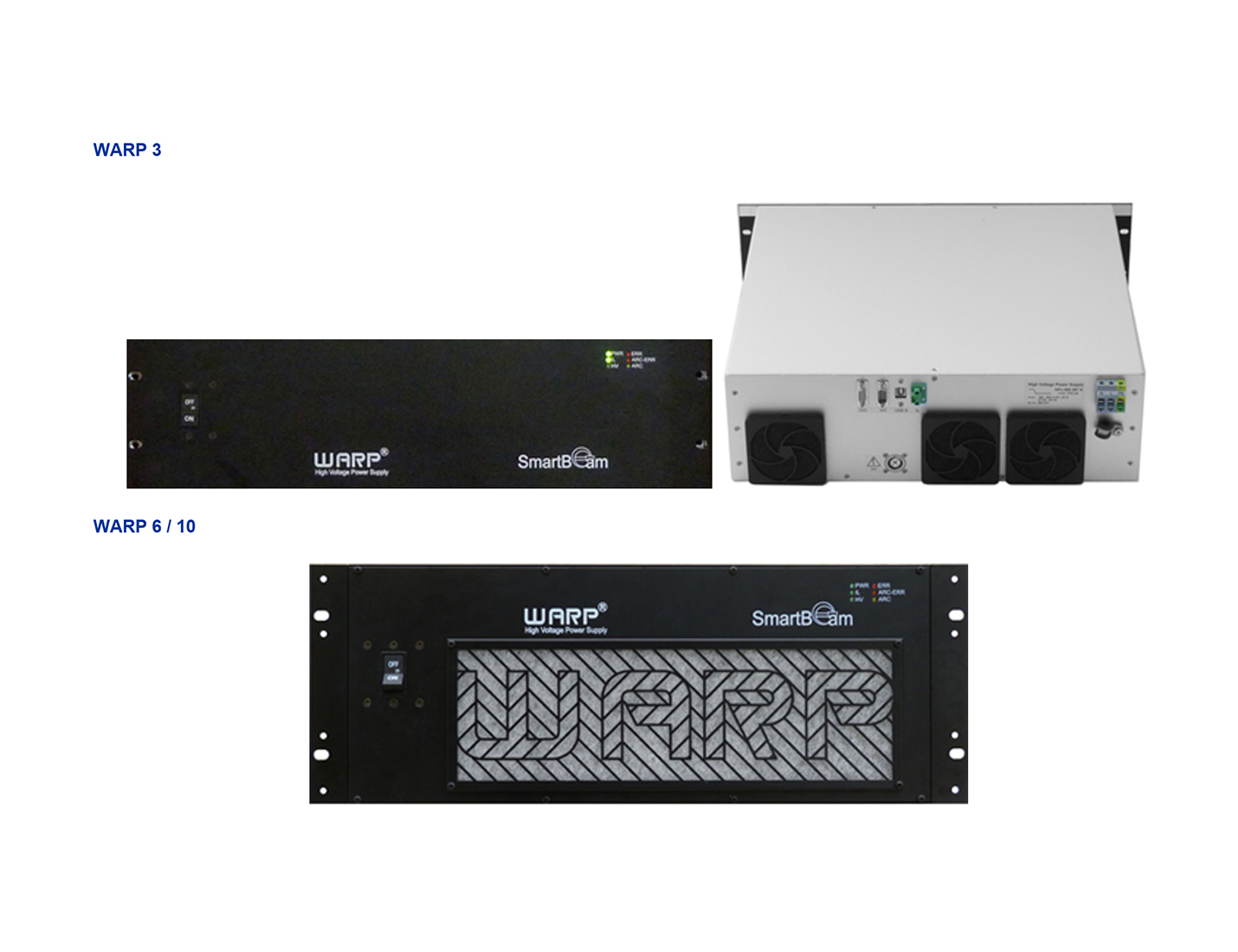

WARP 3

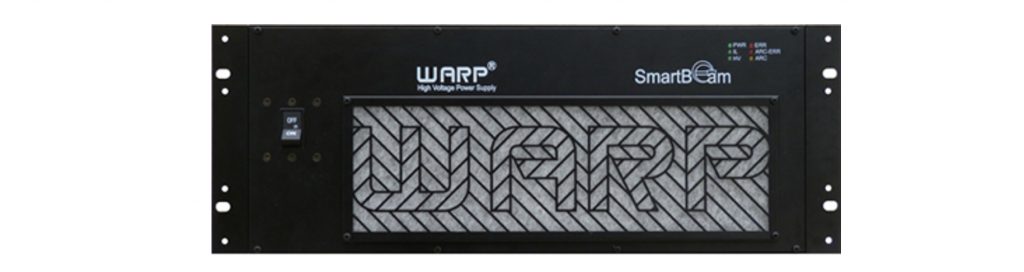

WARP 6 / 10
