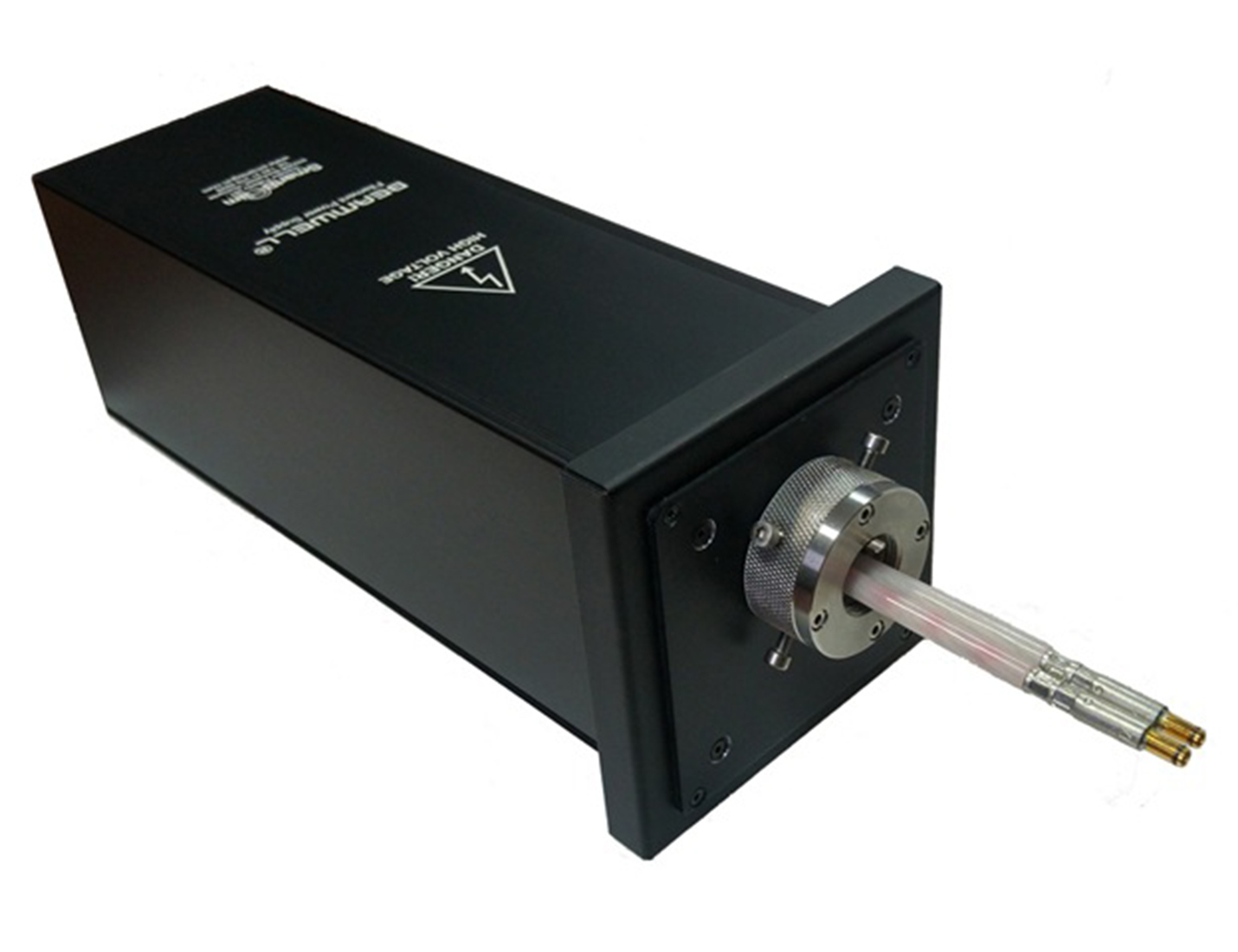

Our latest filament power supply has a compact design in a splash proof case and is installed directly on the high voltage feedtrough bellow the vacuum chamber. Though compact, the StingRay is a full DC power supply with very low losses and noise figure, raising the bar for the attainable space and electrical efficiency.

Physical

• Aluminum black anodized case 105mm W x 105mm H x 220mm Length up to the high voltage feedtrough atmosphere side
• AC Input 230VAC 50 Hz
• Total weight 4kg

Cables

• From High Voltage Power Supply – 12 KV Rated cable, 1Amp, Shielded, Custom design
• To filament – internal shielded pair of 10.5sqmm conductors, 12 KV Rated, Custom design

Electrical

• Output Current – 50 Amps max
• Output Voltage – Max 14VDC (no load)
• Technology – Primary switched with DSP control
• Completely isolated interface section
• RS232 port for firmware upgrades and service
• Control Input – 0-10VDC (10V = 50Amp)
• Monitor Output -directly measured on the secondary side – 0-10VDC (10V = 50Amp)
