Physical

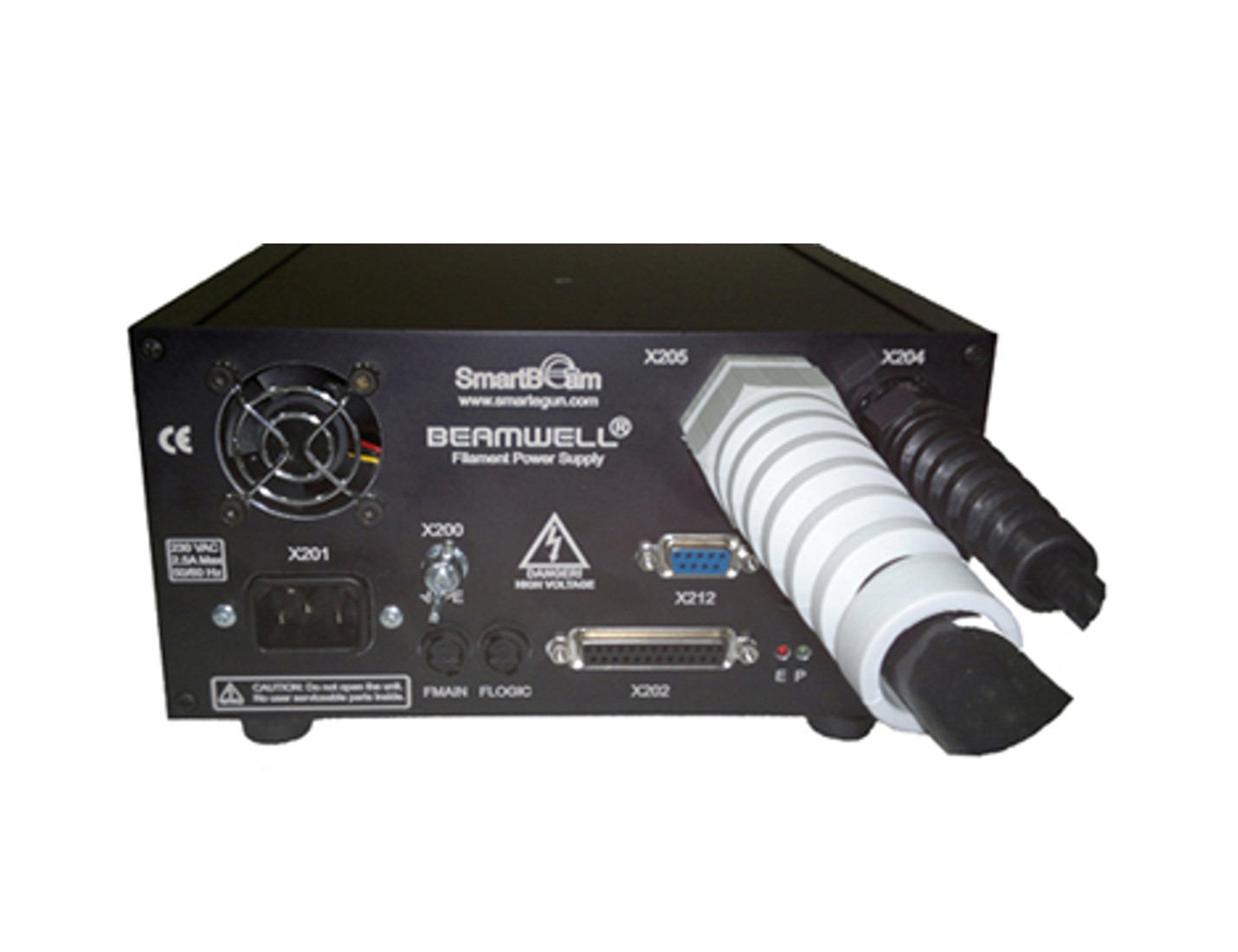

• Aluminum black anodized case 200mm W x 110mm H x 300mm Lenght +180mm additional space in the back for cable curvature
• AC Input 230VAC 50 Hz
• Total weight 6kg

Cables

• From High Voltage Power Supply – 12 KV Rated cable, 1Amp, Shielded, Custom design
• To filament – shielded pair of 10.5sqmm conductors, 12 KV Rated, Custom design

Electrical

• Output Current – 50 Amps max
• Output Voltage – Max 14VDC (no load)
• Technology – Primary switched with DSP control
• Completely isolated interface section
• RS232 port for firmware upgrades and service
• Control Input – 0-10VDC (10V = 50Amp)
• Monitor Output -directly measured on the secondary side – 0-10VDC (10V = 50Amp)
